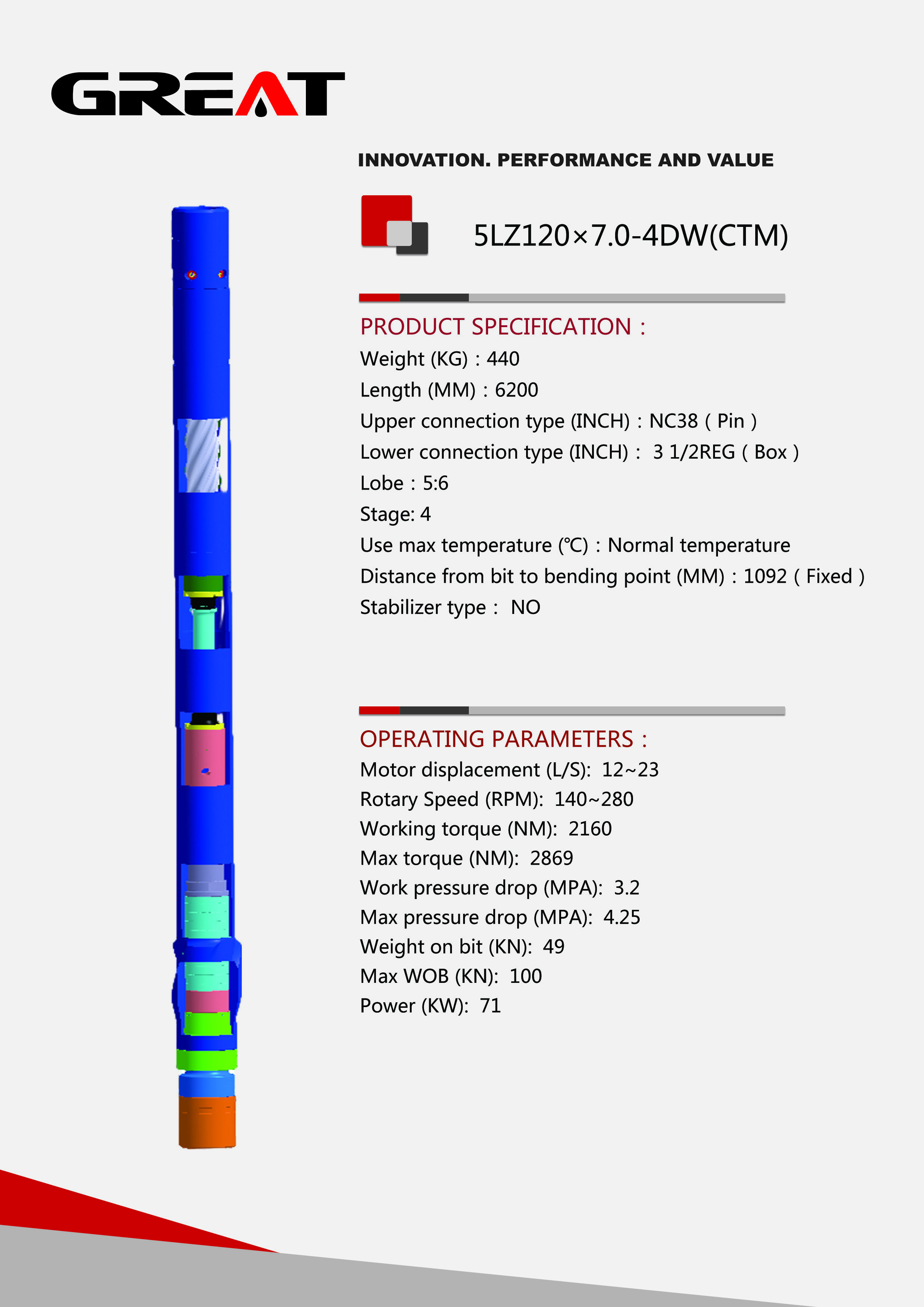

| PRODUCT SPECIFICATIONS |
|
| Weight(KG) |
440 |
| Length(MM) |
6200 |
| Upper connection type(INCH) |
NC38（Pin） |
| Lower connection type(INCH) | 3 1/2REG（Box） |
| Lobe | 5：6 |
| Stage | 4 |
| Use max temperature (C) | Normal temperature |
| Distance from bit to bending point (MM): | 1092 (Fixed) |
Stabilizer type
|
NO |
| OPERATING PARAMETERS |
|
| Motor displacement (L/S) | 12-23 |
| Rotary Speed (RPM) | 140-280 |
| Working torque (NM） | 2160 |
| Max torque (NM) | 2869 |
| Work pressure drop (MPA) | 3.2 |
| Max pressure drop (MPA) | 4.25 |
| Weight on bit (KN) | 49 |
| Max WOB (KN) | 100 |
| Power (KW) | 71 |
