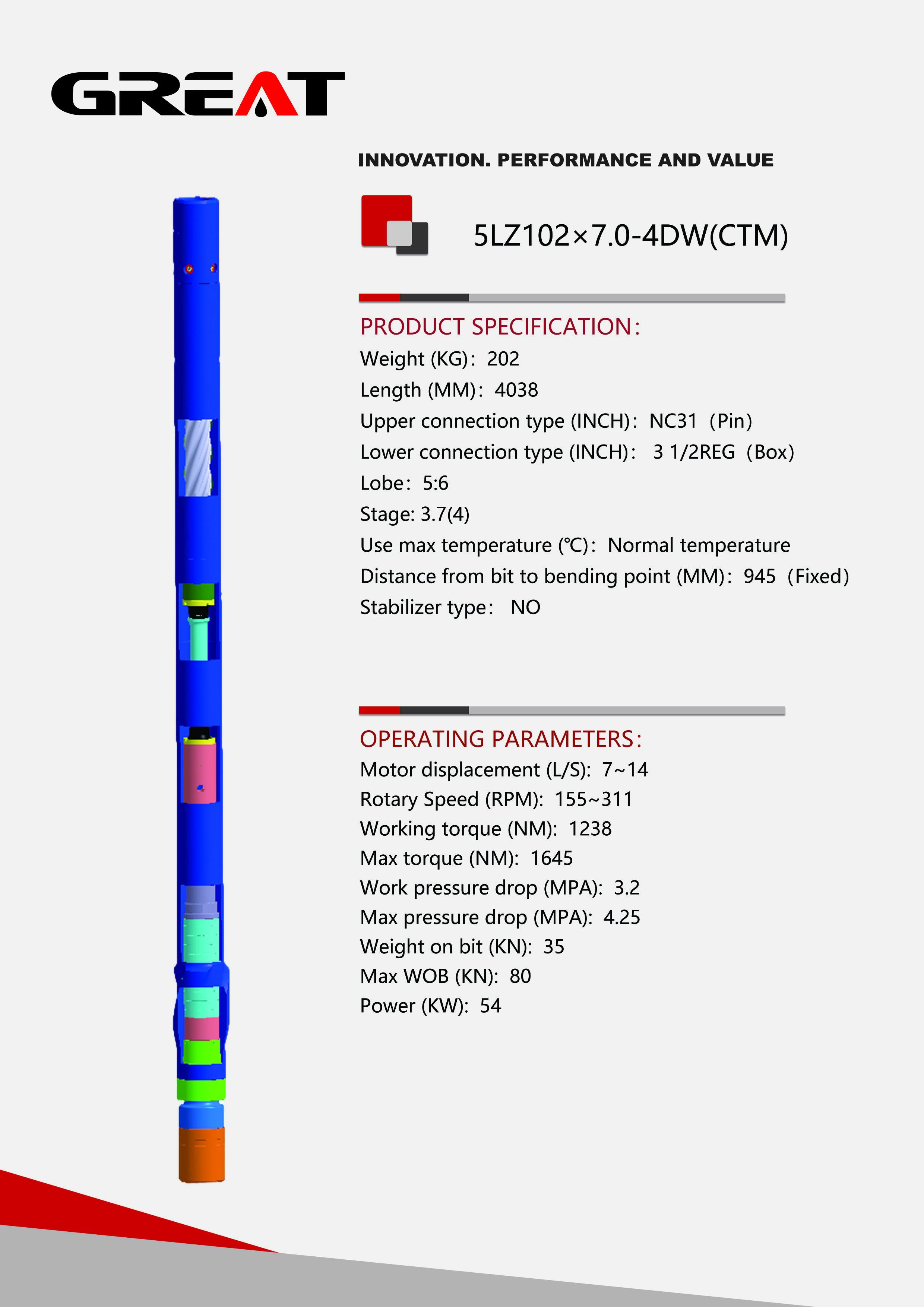

| PRODUCT SPECIFICATIONS |
|
| Weight(KG) |
202 |
| Length(MM) |
4038 |
| Upper connection type(INCH) |
NC31（Pin） |
| Lower connection type(INCH) | 3 1/2REG（Box） |
| Lobe |
5：6 |
| Stage | 3.7（4） |
| Use max temperature (C) | Normal temperature |
| Distance from bit to bending point (MM): | 945 (Fixed) |
Stabilizer type
|
NO |
| OPERATING PARAMETERS |
|
| Motor displacement (L/S) | 7-14 |
| Rotary Speed (RPM) | 155-311 |
| Working torque (NM） | 1238 |
| Max torque (NM) | 1645 |
| Work pressure drop (MPA) | 3.2 |
| Max pressure drop (MPA) | 4.25 |
| Weight on bit (KN) | 35 |
| Max WOB (KN) | 80 |
| Power (KW) | 54 |
