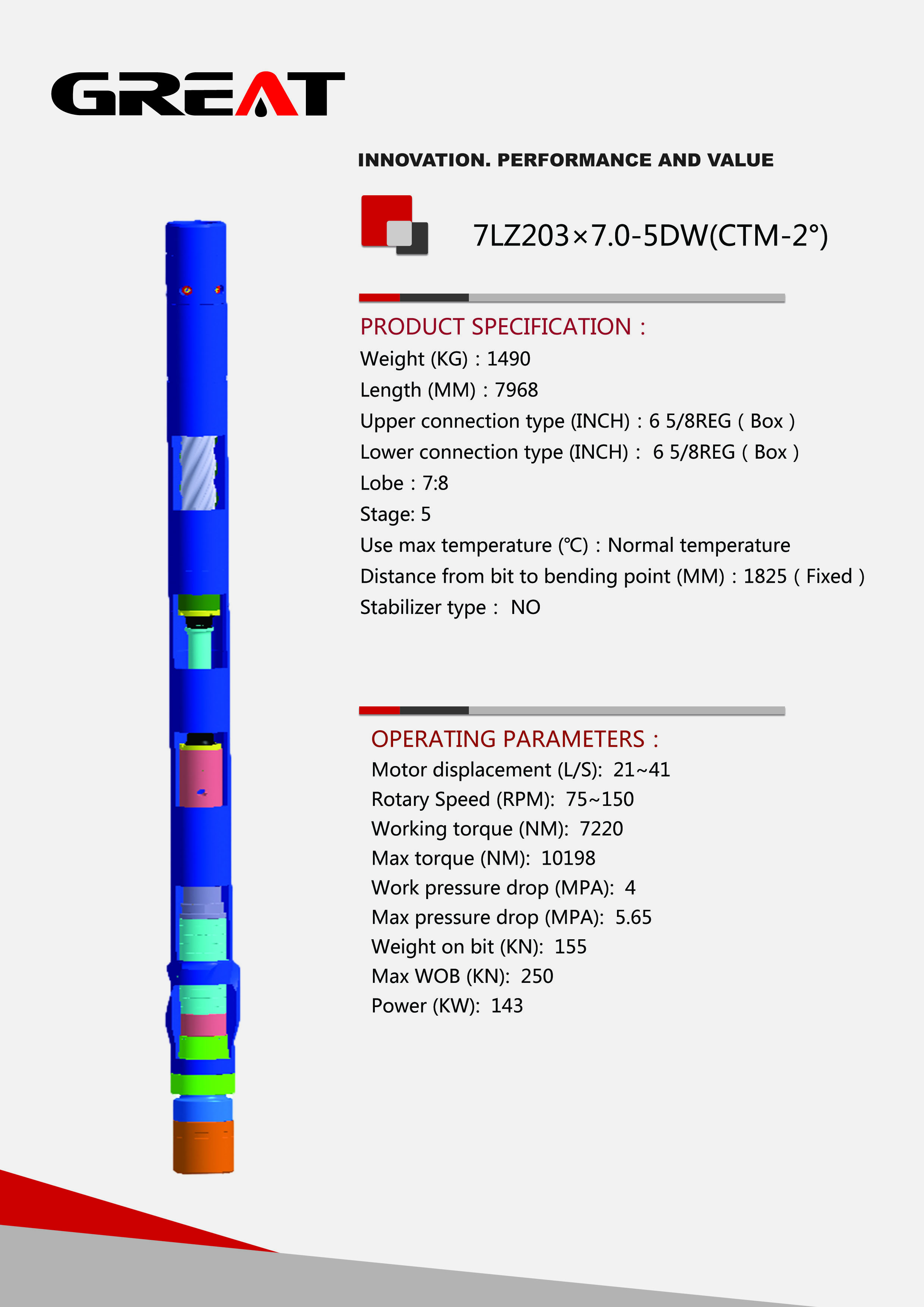

| PRODUCT SPECIFICATIONS |
|
| Weight(KG) |
1490 |
| Length(MM) |
7898 |
| Upper connection type(INCH) |
6 5/8REG(Box) |
| Lower connection type(INCH) | 6 5/8REG(Box) |
| Lobe |
7：8 |
| Stage | 5 |
| Use max temperature (C) | Normal temperature |
| Distance from bit to bending point (MM): | 1825 (Fixed) |
Stabilizer type
|
NO |
| OPERATING PARAMETERS |
|
| Motor displacement (L/S) | 21-41 |
| Rotary Speed (RPM) | 75-150 |
| Working torque (NM） | 7220 |
| Max torque (NM) | 10198 |
| Work pressure drop (MPA) | 4 |
| Max pressure drop (MPA) | 5.65 |
| Weight on bit (KN) | 155 |
| Max WOB (KN) | 250 |
| Power (KW) | 143 |
